Recirculation Systems

Create a safe and fun splash pad without water consumption limits. Our industry-leading water quality treatment systems save millions of gallons of water annually, are easy to operate and meet or exceed local health department regulations. Use our skid-mounted system, provide your own mechanical room or we can prefabricate an enclosure for your project.

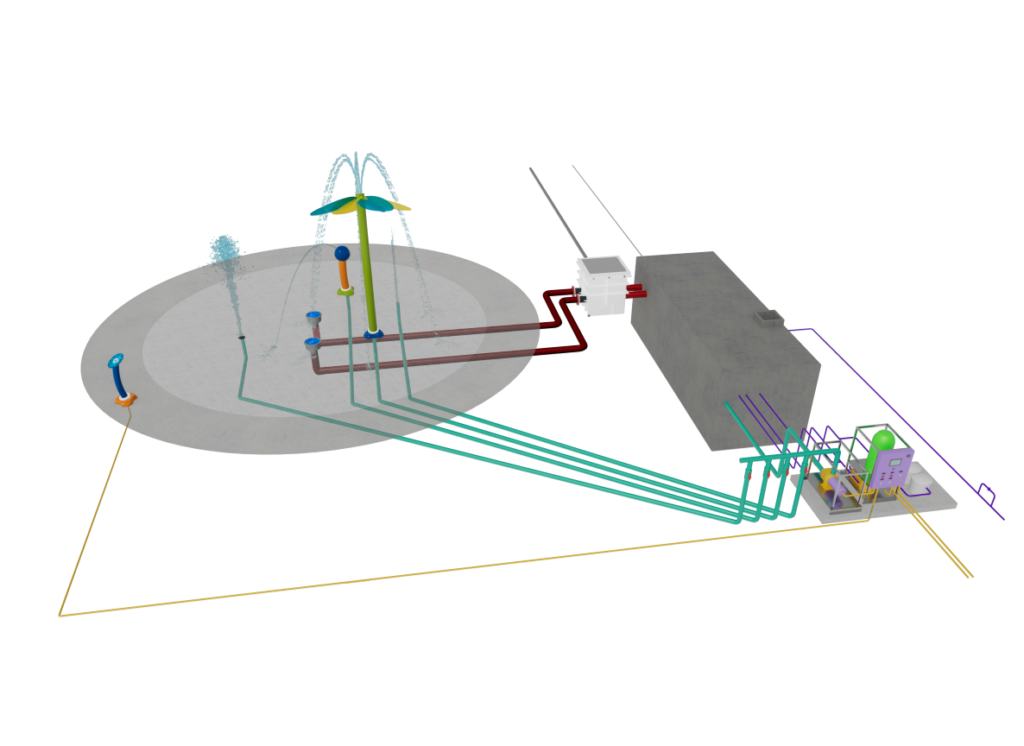

Recirculation system for Aquatix splash pads

See a detailed Recirculation System illustration See Recirculation system design examples

Equipment operating systems are available in either above ground skid mounted systems or underground vault systems. Operating systems will provide complete filtration and chemical treatment of water to ensure safe water play. Operating systems are UL Listed and incorporate NSF listed equipment. Each Recirculation system is designed for project specific needs.

All operating systems are provided with the following pre-plumbed, pre-wired components:

Aquavator product from Aquatix that turns on water by touch

Activation Bollard

Low-voltage proximity sensor located within the bollard cap activates water flow when cap is pressed. Turn on/off entire splash pad feature or designated zoned areas.



Control Panels

Control simple on/off aqua play activities or add Programmable Logic Controller (PLC) to create splash pad zoning or sequenced aqua play activities, or LED light shows.



Water Distribution Manifold

Pre-plumbed water delivery system transfers water from feature pumping-system to water features. Manual control valves regulate water flow. Upgrade with electric valves or solenoid valves for zones or sequencing activities.



Filtration System

Control simple on/off aqua play activities or add Programmable Logic Controller (PLC) to create splash pad zoning or sequenced aqua play activities, or LED light shows.



Chemical Treatment mechanism for aquatix splash pads

Chemical Treatment

Safe, lockable enclosure can be installed underground or mounted directly to concrete support pads next to an equipment skid system. Separate, self-contained enclosures house chlorine and acid.



Water Reservoir Tank

Pre-cast concrete tank (5,000 psi meets ASTM C-913 and C-1227) with lockable access hatch, service ladder and required plumbing connection. Tank is sized to meet project requirements (e.g. flow-rate, size of pad, environmental surroundings).



Ultraviolet disinfection system for Aquatix Splash Pads

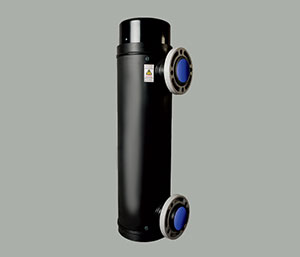

Ultra-Violet Disinfection

Secondary sanitization for recirculation system. UV system can be installed in filtration or feature pumping-system.



Above Ground Enclosure for Aquatix splash pad mechanical systems

Above-Ground Enclosure

Safe, lockable enclosure that will be directly mounted to a concrete support pad next to water play area.



Jump in and get started!

We will help you plan, design and implement your water spray park. Contact Us
